L-915

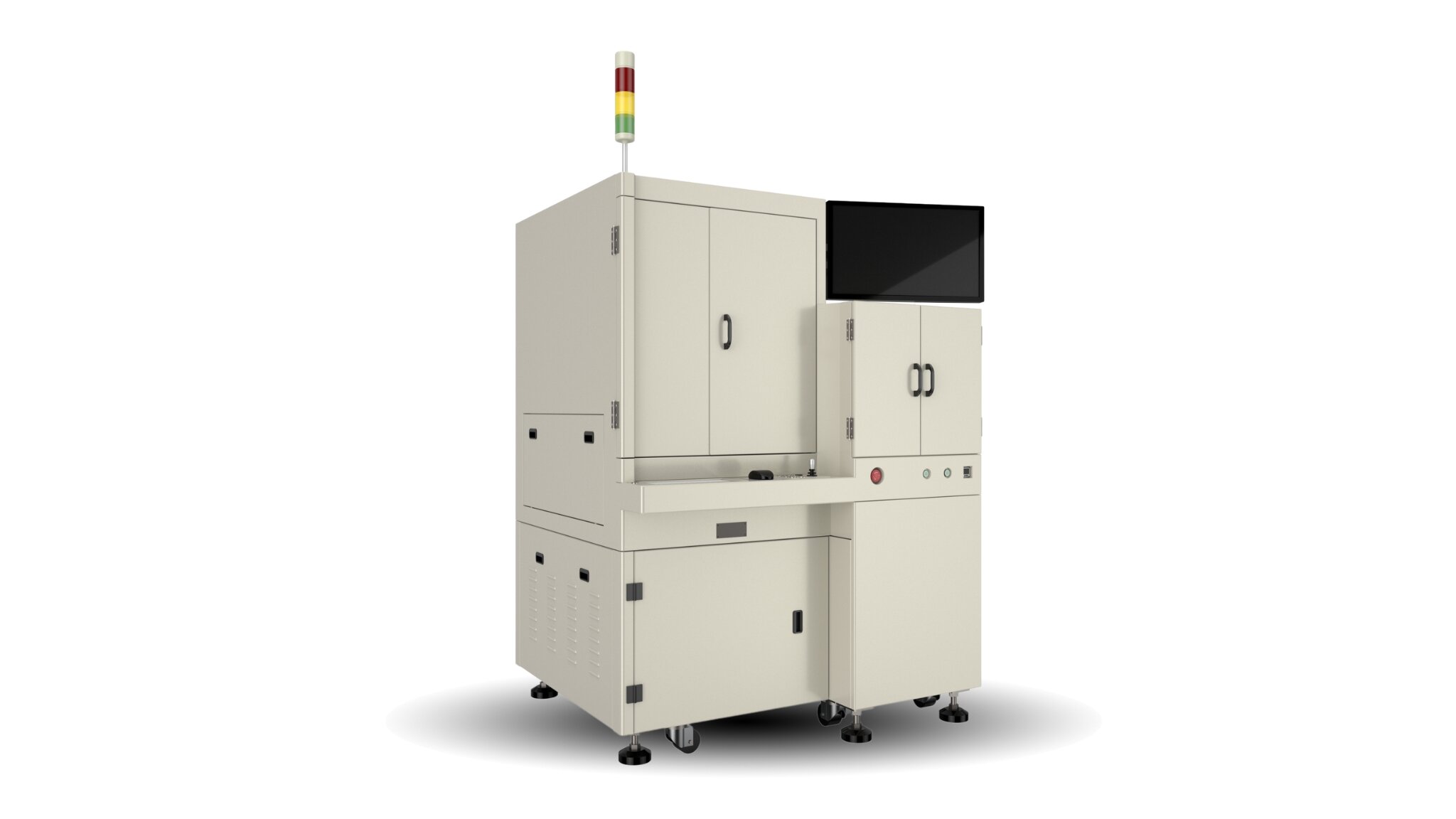

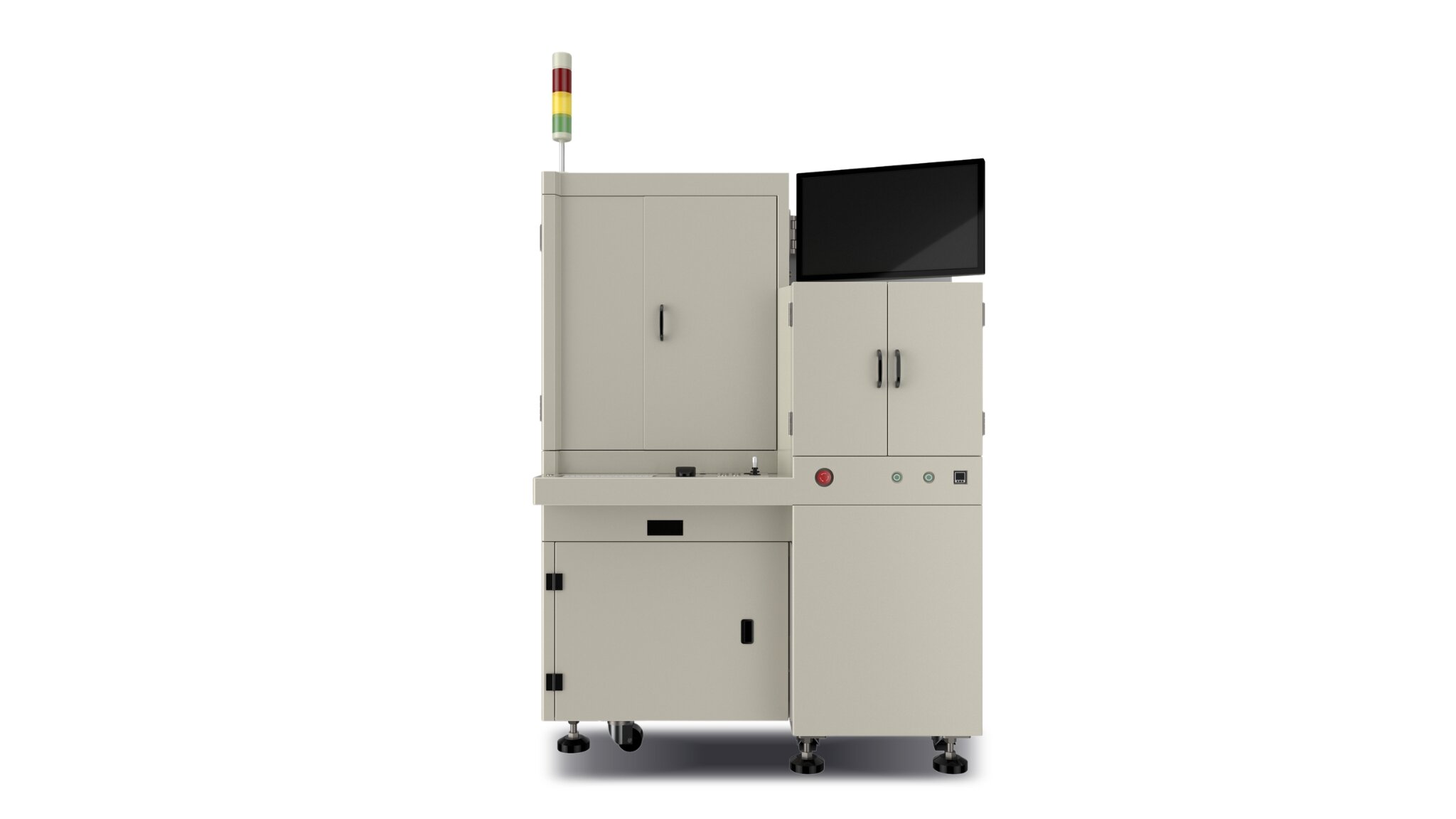

Automatic Epi-Up LED Probing and Testing System

Integrated design of probe test, reliable test, and high accuracy
Fully automatic loading and unloading system, supporting double cassette test
Support two positioning methods: flat edge or notch by the wafer
Compatible with test of 4 and 6-inch wafers
Accurate chiplet scanning combined with custom test
Active probe pressure adjustment technology, reliable probe mark control
Rapid heating and cooling system (optional)
Test band covers ultraviolet (UVC/UVB/UVA), blue, green, yellow, red, and white light, etc. (optional)
Current source gear 1.5A@200V
A variety of ESD specifications and long ESD service life in the industry (optional)
Support general electrical parameters, and optical parameters including WLP/WLD/WLC/HW/PURITY/CIE-x/CIE-y/CCT/RA/R1-R15
Support Mini and Microv LED gears

Application field

LED chip test

Main functions

Sampling test of optical parameters

Automatic probe cleaning

Automatic alignment and fast scanning and positioning

Real-time display and automatic adjustment of probe pressures by the active edge detector

Automatic probe grinding

Server-side management of product files

Automatically output activation report

Cavity point positioning (0,0)

Automatic regional anomaly retest

Peripheral shrinkage point and shrinkage cavity point

Different test conditions for different channels

Different test conditions for the inner circle and the outer circle

Full test for the outer circle and sampling test for the inner circle

Multi-mapping real-time display

Automatic regional anomaly retest

Support connection with MES to automatically load product files

Re-measurement of an NG point

Edge detection, height detection, and fixing test

Expansion test, user-defined test, and edge detection test

Sampling test, and then full test

Sampling test of a random point

Automatic BIN classification of test data

Test application

Formal LED WAT Test

Special application

Rapid heating and cooling test

Automated factory

Support rear automatic line upgrade
